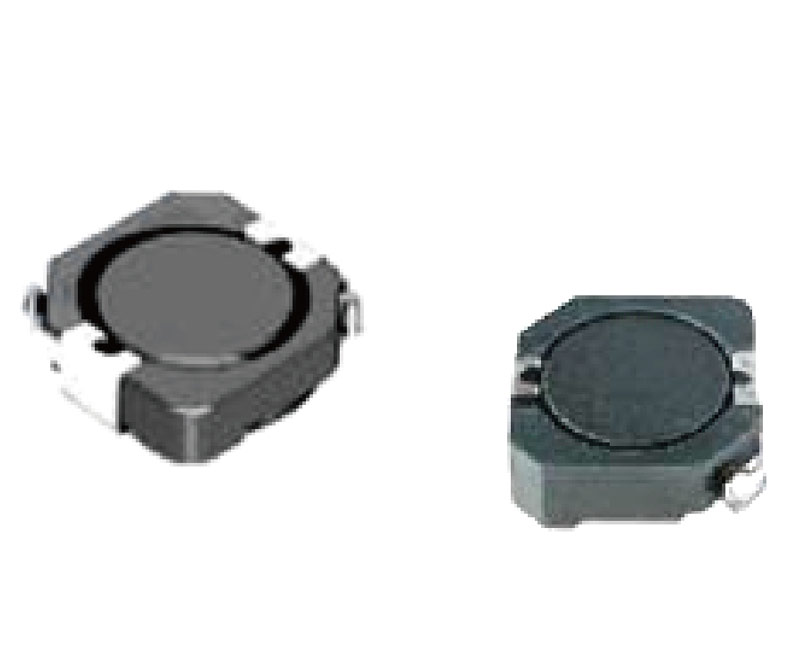

■Features/特征   Various high power inductors are superior to be high    saturation for surface mounting.  ■Applications/用處   Power supply for VTR, OA equipment, digital camera, LCD TV set, notebook PC, partable communication equipments, DC/DC converters, etc

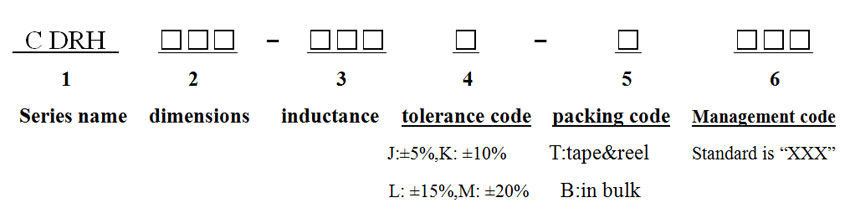

■Part numbering system/型號標示法

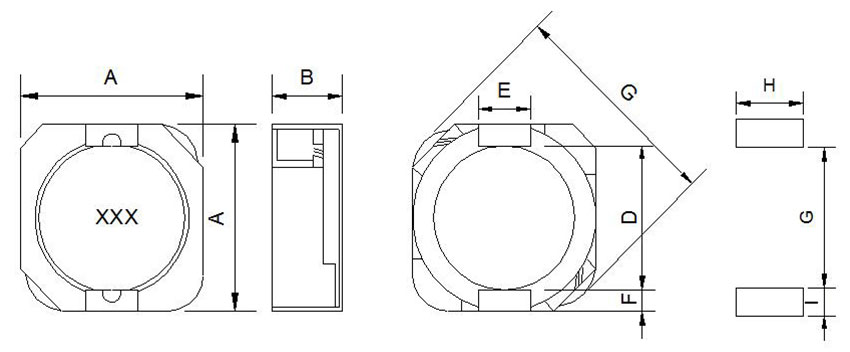

■Shapes and dimensions/形狀及尺寸 (UNIT:mm)

Type	Amax	Bmax	Cmax	D	E	F	G	H	I
CDRH103R	10.50	3.10	13.50	7.70	3.00	1.20	7.30	3.20	1.60
CDRH104R	10.50	4.00	13.50	7.70	3.00	1.20	7.30	3.20	1.60
CDRH105R	10.50	5.10	13.50	7.70	3.00	1.20	7.30	3.20	1.60

■SERIES: CDRH103R/104R/105R

※減半工作瞬時功率值一般選擇就可以我以為知足交流電電源附加經營許可證書證工作瞬時功率和高溫回暖經營許可證書證值的交流電電源工作瞬時功率值※Inductance Test Fr. 100KHz 100mA(HP 4277A) at 20℃(L<10uH時)  Inductance Test Fr. 1.0KHz 100mA(HP 4277A) at 20℃(L>10uH時)※不完整性寫出任何東西規格,不列于表內的電感量規格能接洽我們個性定制

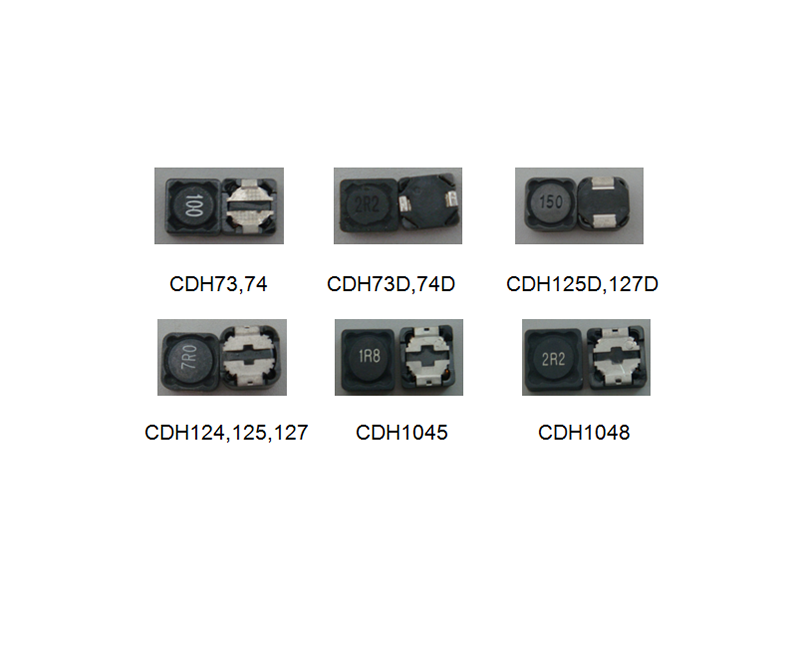

■Real Packing of  SMT Inductor

Tape and Reel Dimensions:(unit:mm)

Surface Mounting Type, Reel/Tape List:

PACKING TYPE	Reel Size(mm)				Tape Size(mm)									Q’ty, Pcs/reel
	A	B	G	N	E	F	D0	P	P0	P2	W	T	K0
LSMT-01	178	11	8.5	60	1.75	3.5	1.5	4	4	2	8	0.25	2.1	2000
